LiDAR and Radar often get mentioned together, especially in conversations about mapping, drones, autonomous systems, or environmental monitoring. At first glance, they seem similar. Both measure distance, both scan environments, and both help turn the physical world into data. But once you look closer, the differences start to matter a lot.
The real contrast comes down to how they see the world. LiDAR relies on light. Radar relies on radio waves. That single distinction shapes everything from accuracy and range to how each system behaves in bad weather. Understanding these differences helps avoid using the right tool in the wrong place, which happens more often than it should. Let’s dig into it.
How LiDAR and Radar See the World
The simplest way to understand the difference is to look at what each system sends out into the environment. LiDAR uses light. Radar uses radio waves. That one distinction affects everything else.
LiDAR systems emit laser pulses, usually in the near-infrared range. These pulses hit objects and bounce back. By measuring how long that round trip takes, the system calculates distance with very high precision. Repeat that process millions of times, and you get a dense three-dimensional representation of the scene, often called a point cloud.
Radar systems send out radio waves. Those waves travel much farther than light and are less affected by environmental interference. Radar measures distance the same way, but it can also measure speed directly by analyzing frequency shifts caused by moving objects.
Both rely on the time-of-flight principle. The difference is how those signals behave once they leave the sensor.
Why Wavelength Matters More Than It Sounds
Wavelength is not just a technical detail. It explains why LiDAR and Radar feel so different in practice.
Laser light has a very short wavelength. That allows LiDAR to capture fine detail. Edges are sharp. Small objects show up clearly. Height differences are measured down to centimeters, and in some controlled setups, even smaller.
Radio waves have much longer wavelengths. That limits resolution but increases stability. Radar cannot see fine surface details the way LiDAR can, but it does not need perfect visibility to function. Fog, rain, dust, snow, and darkness barely slow it down. This tradeoff shapes nearly every real-world application.

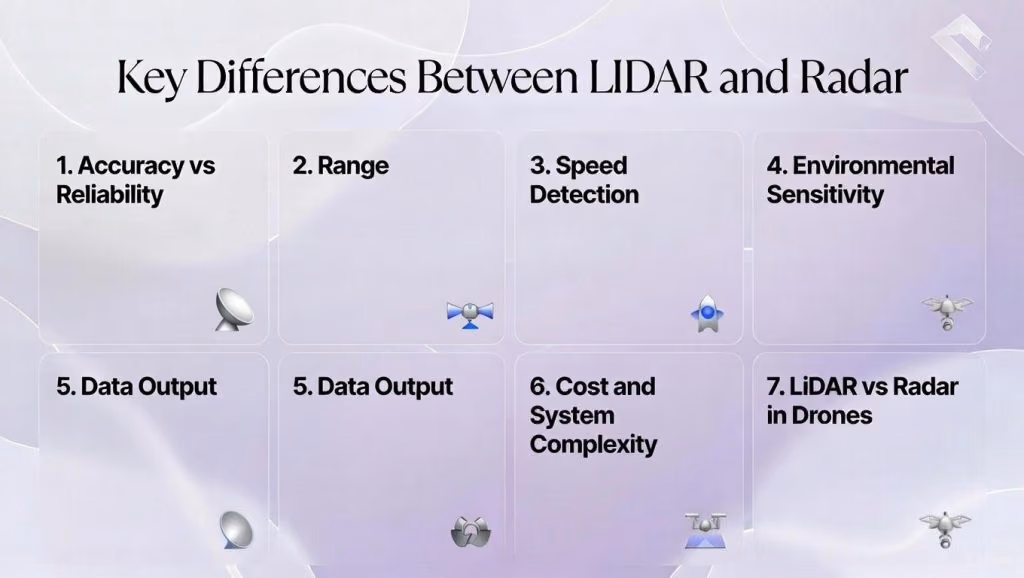

Key Differences Between LiDAR and Radar
Below are the main technical and practical differences that shape how LiDAR and radar perform in real-world scenarios. Each comparison shows where one technology has the upper hand and why that matters when choosing between them.
1. Accuracy vs Reliability: A Key Tradeoff
LiDAR is all about precision. When the environment is stable – clear skies, steady platforms, no interference – it shines. You get rich, highly detailed spatial data that’s ideal for:
- Topographic mapping.
- Urban modeling.
- Forestry and vegetation analysis.
- Infrastructure and asset surveys.
Its strength lies in producing sharp, accurate 3D models, but that level of detail depends on having favorable conditions.
Radar plays a different game. It might not match LiDAR’s visual clarity, but it keeps working when the weather turns. Think:
- Heavy rain.
- Dust clouds.
- Low light or total darkness.
- Fog and snow.
Radar handles those situations without missing a beat, making it a go-to choice when consistency is more important than visual sharpness.
This tradeoff shows up clearly in safety-critical work like geotechnical monitoring. LiDAR can give you a beautifully detailed scan of a slope or terrain surface. But when you need to know if that slope is shifting in real time, even in a storm, Radar is the tool you trust. High-resolution Radar systems can detect very small ground movements. In short, LiDAR helps you map. Radar helps you monitor. And sometimes, you need both.
2. Range: How Far Each Technology Can Reach
LiDAR performs best at short to medium distances. In most practical deployments, that means from a few dozen meters to a few kilometers. Some specialized systems can go farther, but cost and complexity increase quickly.
Radar is built for distance. Tens of kilometers is normal for many radar systems. This makes radar indispensable in aviation, maritime navigation, weather monitoring, and large-scale surveillance. If your use case involves wide-area coverage or early detection at long distances, Radar is usually the only realistic option.
3. Speed Detection: A Clear Win for Radar
One of Radar’s strongest advantages is its built-in ability to measure speed. It uses the Doppler effect to determine how fast an object is moving toward or away from the sensor. This process is direct, reliable, and continuous, which makes Radar a perfect fit for environments where motion matters.
Common use cases for Radar-based speed detection:
- Traffic enforcement (measuring vehicle speed on roads).
- Aircraft tracking and navigation.
- Weather systems (tracking storm movement).
- Industrial safety (monitoring moving equipment or hazards).
Traditional LiDAR does not measure speed directly, but FMCW LiDAR systems can provide direct velocity data using Doppler shift. In fast-changing environments, where timing is everything, Radar’s real-time speed sensing gives it a clear edge.
4. Environmental Sensitivity: When Conditions Get Messy
LiDAR depends on light traveling cleanly through the air. That makes it sensitive to atmospheric interference. Fog, rain, snow, dust, and even heavy humidity can scatter or absorb laser pulses. When that happens, data quality drops. In extreme cases, the sensor becomes unreliable.
Radar is far more forgiving. Radio waves pass through these conditions with much less attenuation. That makes Radar the go-to choice for continuous monitoring in unpredictable environments. This is one reason Radar dominates weather systems and maritime navigation, while LiDAR is more common in controlled surveys and mapping tasks.
5. Data Output: Visual Detail vs Measurement Stability
LiDAR produces visually rich data. Point clouds generated by LiDAR can be colored, textured, and layered with other data sources like aerial imagery. You can see buildings, vegetation, power lines, terrain contours, and even small surface features with impressive clarity.
Radar data looks very different. It focuses on signal strength, movement, and distance rather than visual realism. Radar data often comes in the form of signal graphs or point reflections, which can be harder to interpret than visual imagery without training. This difference often leads to hybrid systems.
6. Cost and System Complexity
LiDAR systems tend to be more expensive and complex. High-precision lasers, sensitive detectors, mechanical scanning components, and heavy data processing requirements all contribute to cost. Maintenance and calibration can also be more demanding, especially in harsh environments.
Many commercial radar systems are simpler in design and more robust, but high-end radar platforms, like AESA arrays, can be extremely complex and costly. Some modern Radar systems use electronic beam steering instead of moving parts, which improves reliability and reduces long-term maintenance.
That said, advanced Radar systems used in defense or space applications can be extremely expensive. Cost depends heavily on system type and performance requirements.
7. LiDAR vs Radar in Drones and Aerial Systems
In drone-based operations, LiDAR is often used for mapping and inspection missions. Mounted on UAVs, LiDAR sensors can capture terrain and structures with high precision, even in areas that are difficult to access from the ground.
While traditional Radar systems were once too bulky for drones, modern compact mmWave radars are now increasingly used in small UAVs for obstacle detection and collision avoidance. Synthetic aperture Radar, for example, allows large-scale imaging regardless of cloud cover or lighting conditions. Each technology fits a different mission profile.
LiDAR Applications Where Detail Matters
LiDAR shines in scenarios where spatial accuracy and surface detail are critical. Common use cases include:
- Topographic and contour mapping.
- Urban planning and 3D city modeling.
- Forestry and vegetation analysis.
- Archaeology and cultural heritage surveys.
- Infrastructure inspection and asset mapping.
- Autonomous navigation in structured environments.
In these fields, the ability to capture fine detail outweighs concerns about weather sensitivity or long-range detection.
Radar Applications Where Stability Comes First
Radar is chosen when reliability and continuity matter more than visual detail. Typical Radar-driven applications include:
- Aviation traffic control.
- Maritime navigation and collision avoidance.
- Weather monitoring and storm tracking.
- Geotechnical slope and deformation monitoring.
- Rockfall and landslide detection.
- Military surveillance and reconnaissance.
Radar systems are often deployed in environments where failure is not an option.
Why It’s Not LiDAR or Radar in Autonomous Systems
In autonomous vehicles and robotics, it’s almost never a question of picking one sensor over the other. It’s about combining them. Each brings something valuable to the table, and using them together helps cover the gaps that any single system would have on its own.
Here’s how the key sensors typically work together:
- LiDAR provides detailed 3D spatial awareness, helping the system understand shapes, distances, and layouts with precision.
- Radar adds long-range detection and real-time speed measurement, even in low-visibility conditions.
- Cameras capture visual detail like signs, lights, and lane markings, supporting recognition and classification tasks.
This sensor fusion approach builds redundancy and improves decision-making. In unpredictable environments, relying on just one sensor type is rarely a safe bet.
Choosing the Right Technology: Practical Questions to Ask
Instead of asking which technology is better, it helps to ask better questions.
- Do you need fine surface detail or long-range detection?
- Will the system operate in poor weather or controlled conditions?
- Is real-time motion tracking critical?
- How large is the area you need to monitor?
- What level of maintenance and calibration is acceptable?
The answers usually make the choice clear.
Why LiDAR and Radar Will Continue to Coexist
LiDAR and Radar are not competing in the way people often assume. They solve different problems, and those problems are not going away.
As sensor technology improves, both systems are becoming smaller, faster, and more accessible. Software and AI now play a huge role in turning raw sensor data into usable insights, regardless of whether that data comes from light or radio waves.
The future is not about replacing one with the other. It is about using each where it makes sense.
Where We Fit In at FlyPix AI
At FlyPix AI, we help users automate what they see from the sky. Whether it’s satellite, aerial, or drone imagery, our platform is built to handle it at scale. By using AI agents, we make it possible to detect, monitor, and inspect complex scenes quickly and precisely. Our tools save up much time usually spent on manual annotation, which means teams can go from raw data to real insight in seconds.
Our technology is designed to work with dense geospatial imagery across many industries, including construction, forestry, infrastructure, agriculture, and government projects. We make it easy to train custom AI models without needing programming skills, so users can tailor detection tasks to their exact needs. Whether the source is LiDAR-based or optical drone footage, we focus on helping teams extract value from the images, faster and with less friction.
As LiDAR and radar data become more common in large-scale environmental analysis and risk monitoring, tools like ours are essential to keep up with the volume. We don’t just provide automation. We help make that automation practical for real-world use cases without requiring deep technical setups or massive engineering resources
Final Thoughts
LiDAR vs Radar is not a battle of technologies. It is a balance of tradeoffs.
LiDAR offers unmatched spatial detail when conditions allow. Radar delivers consistency and reliability when conditions do not. Understanding that difference is what turns sensor selection from guesswork into smart system design.
If you know what you need to measure, where you need to measure it, and how reliable the data must be, the right choice usually becomes obvious.
FAQ
Not really. LiDAR depends on light, and light doesn’t travel well through dense fog, heavy rain, or snow. If the weather’s bad, expect weaker returns or patchy data. Some newer systems handle it a bit better, but generally, LiDAR performs best in clear conditions.
Yes, that’s where Radar shines. It uses radio waves, which travel much farther than laser light. If your goal is to monitor something across several kilometers or detect movement from a distance, radar is probably the better fit.
Because each one fills in what the other lacks. LiDAR gives you a sharp, detailed 3D picture of the environment. Radar gives you motion and distance data, even when the weather’s bad or visibility is low. Together, they make driving systems smarter and more reliable.
For fine detail and spatial resolution, yes. LiDAR can detect small surface features down to a few centimeters. Radar, while precise in its own way, doesn’t give you that kind of visual granularity.
Radar usually costs less. LiDAR systems tend to be more expensive because of the laser components, sensors, and the processing power needed to handle all that data. That said, prices for both have been coming down as the tech matures.
Yes, especially for LiDAR. You’re working with massive point clouds that need to be cleaned, sorted, and analyzed. Radar data is different – it’s more signal-heavy and less visual. In both cases, good software makes a huge difference. Platforms like FlyPix AI are built to handle this kind of processing at scale.
On their own, they just tell you something’s there and how far away it is. But when you pair them with machine learning or AI models, you can train systems to recognize patterns, whether it’s a building, a tree, or a moving car. That’s where geospatial analysis starts to get really powerful.
